Embedding the Webview

Creating Apps with PhoneGap and Android Native Components with the Android Studio extension

This tutorial will show you how to add PhoneGap/Cordova support to an existing Android project using PhoneGap's Android Studio extension.

Notice: make sure you're in Text mode when editing XML files. Select the Text tab at the bottom of the XML editor.

Create Android project

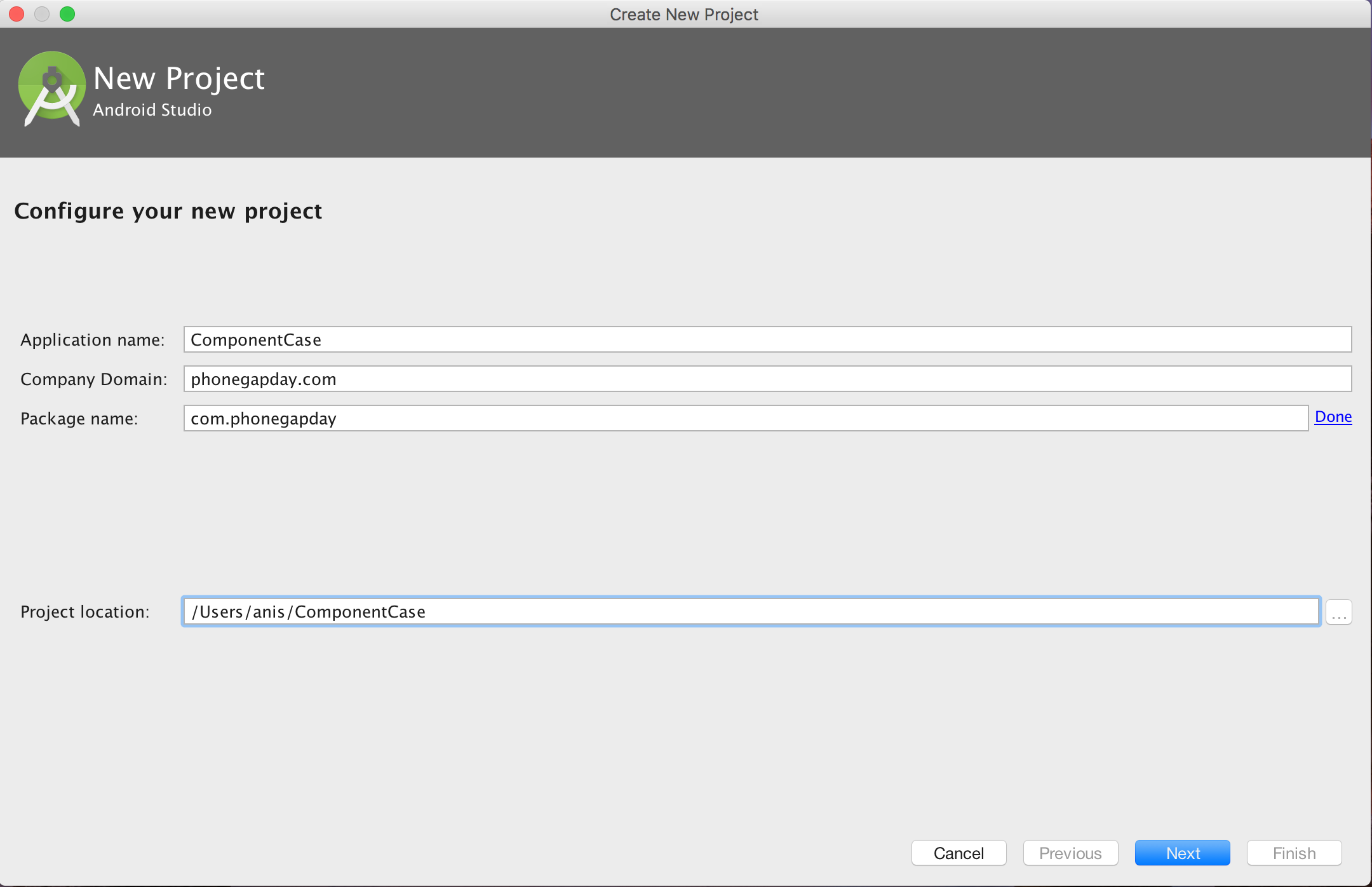

• Create a new android project, set Application name to "ComponentCase", Company Domain to "phonegapday.com" and edit Package name to be "com.phonegapday". Click next.

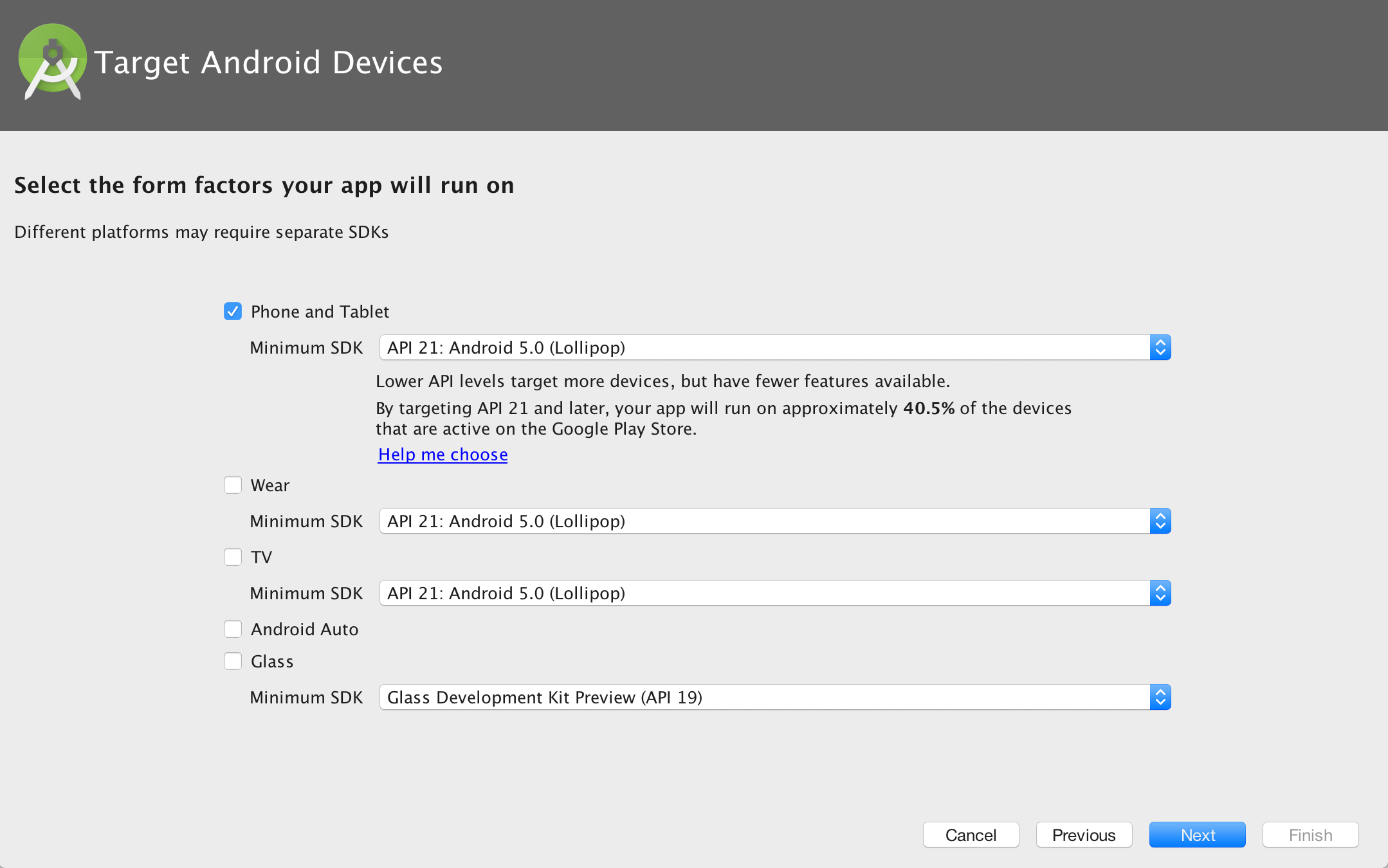

• Check "Phone and Tablet" and set Minimum SDK to API 21: Android 5.0 (Lollipop)

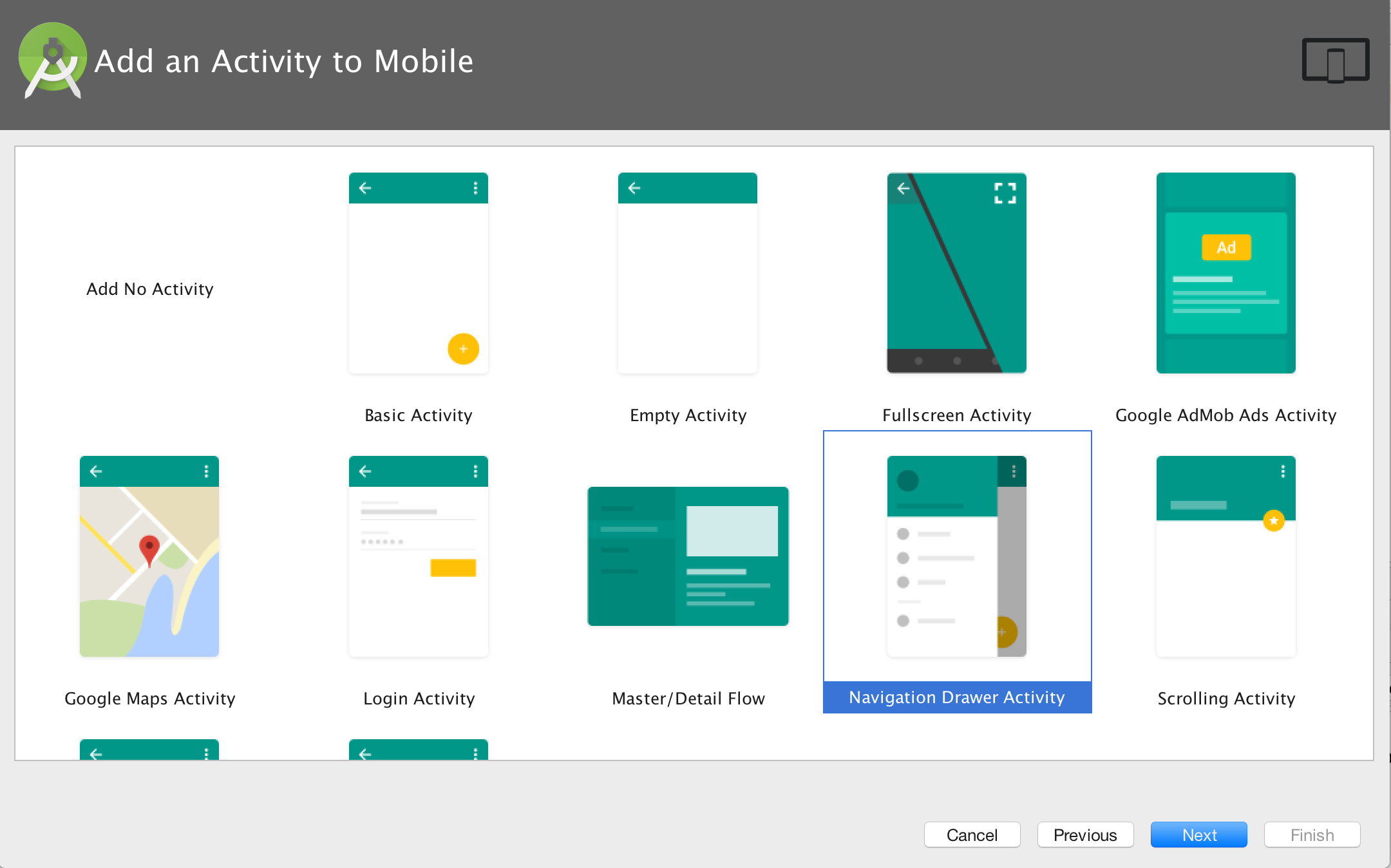

• Click next and select "Navigation Drawer Activity".

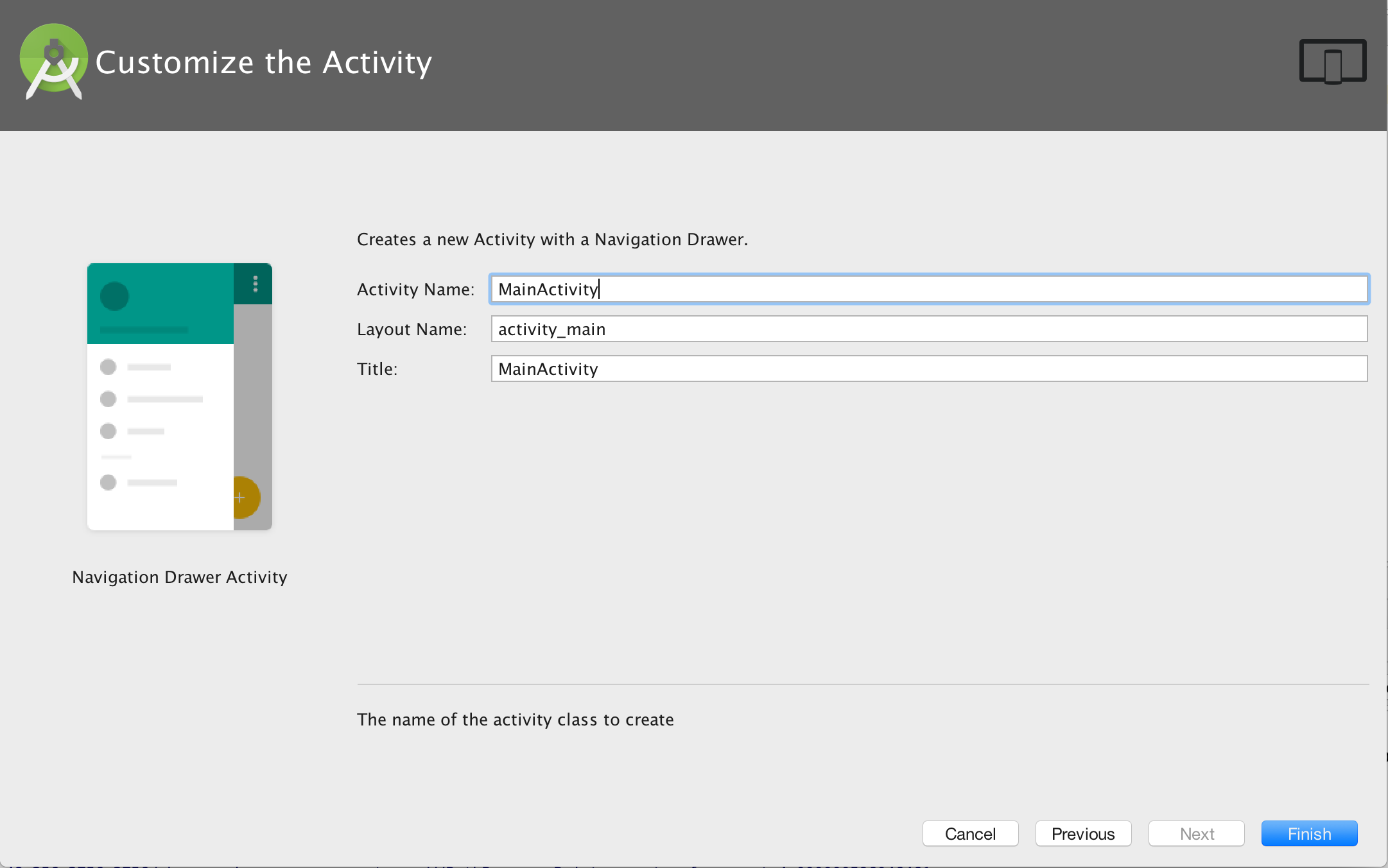

• Click next and click Finish

• Clean up a few things

  • open res/menu/activity_main_drawer.xml and make sure it looks like this

    <?xml version="1.0" encoding="utf-8"?>
    <menu xmlns:android="http://schemas.android.com/apk/res/android">
        <group android:checkableBehavior="single">
            <item
                android:id="@+id/nav_webview"
                android:title="Webview" />
            <item
                android:id="@+id/nav_list_webview"
                android:title="List (WebView)" />
            <item
                android:id="@+id/nav_list_native"
                android:title="List (Native)" />
        </group>
    </menu>

  • open res/layout/app_bar_main.xml and delete the FloatingActionButton
  • delete all ic_menu* from res/drawable
  • open res/layout/nav_header_main.xml and change the first TextView's text to "ComponentCase". Delete the ImageView and the other TextView.
  • open res/values/dimens.xml and change nav_header_height to '100dp'

  • open MainActivity.java and delete lines 26-33 (FloatingActionButton) and make sure your onNavigationItemSelected method looks like this

    public boolean onNavigationItemSelected(MenuItem item) {
          // Handle navigation view item clicks here.
          int id = item.getItemId();

          if (id == R.id.nav_webview) {
              // Handle the camera action
          } else if (id == R.id.nav_list_webview) {

          } else if (id == R.id.nav_list_native) {

          }

          DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
          drawer.closeDrawer(GravityCompat.START);
          return true;
      }

Set up PhoneGap/Cordova in your project

• Make sure you have NodeJS installed. If you already have NodeJS installed make sure you npm install -g plugman
• Go to Android Studio > Preferences > Plugins and click on Browse Repositories button.
• Search for PhoneGap and install it. Make sure you don't install the PhoneGap/Cordova Plugin
• Restart Android Studio
• Go to Tools > PhoneGap > Initialize Project
• You should see a notification: "Gradle files have changed since last project sync. A project sync may be necessary for the IDE to work properly". Click on Sync Now
• Copy everything from www-shared/www to this newly created assets/www
  • You can run the following to get www-shared easily inside your app/src/main/assets folder

    svn export --force https://github.com/imhotep/PGDayEUWs2016.git/trunk/www-shared/www

• Go to Tools > PhoneGap > Install Plugin from npm
• Type in cordova-plugin-device
• Go to Tools > PhoneGap > Install Plugin from npm
• Type in cordova-plugin-console
• Go to Tools > PhoneGap > Install Plugin from filesystem
• Select cordova-plugin-pgdayeu16 which can be found at cordova-plugin-pgdayeu16
  • Again you can easily fetch the plugin to your filesystem using the following command

    svn export https://github.com/imhotep/PGDayEUWs2016.git/trunk/cordova-plugin-pgdayeu16

Embedding CordovaWebView

• open res/layout/content_main.xml and replace the TextView with the following

  <org.apache.cordova.engine.SystemWebView
      android:id="@+id/WebViewComponent"
      android:layout_width="match_parent"
      android:layout_height="match_parent">
  </org.apache.cordova.engine.SystemWebView>

• Add the following attributes to MainActivity.java. Make sure you fix the imports.

  private String TAG = "ComponentWrapper";
  private SystemWebView webView;
  private CordovaWebView webInterface;
  private CordovaInterfaceImpl stupidface = new CordovaInterfaceImpl(this);

• Add the following lines at the bottom of your onCreate method

  //Set up the webview
  ConfigXmlParser parser = new ConfigXmlParser();
  parser.parse(this);

  webView = (SystemWebView) findViewById(R.id.WebViewComponent);
  webInterface = new CordovaWebViewImpl(new SystemWebViewEngine(webView));
  webInterface.init(stupidface, parser.getPluginEntries(), parser.getPreferences());
  webView.loadUrl(parser.getLaunchUrl());

• These methods are required for CordovaWebView to work properly. Add them and fix imports

  @Override
  protected void onActivityResult(int requestCode, int resultCode, Intent intent) {
      super.onActivityResult(requestCode, resultCode, intent);
      stupidface.onActivityResult(requestCode, resultCode, intent);
  }

  @Override
  public void onDestroy() {
      webInterface.handleDestroy();
      super.onDestroy();
  }

  public void onRequestPermissionsResult(int requestCode, String permissions[],
                                         int[] grantResults) {
      try
      {
          stupidface.onRequestPermissionResult(requestCode, permissions, grantResults);
      }
      catch (JSONException e)
      {
          Log.d(TAG, "JSONException: Parameters fed into the method are not valid");
          e.printStackTrace();
      }

  }

Adding native and web list views

• Add the following line to your res/values/strings.xml

  <string name="add_bookmark">Add Bookmark</string>

• Right click on res/layout and select New -> XML -> Layout XML File. Name it bookmark_main. Make sure it looks like this

  <?xml version="1.0" encoding="utf-8"?>
  <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
      android:id="@+id/bookmarkLayout"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      android:orientation="vertical"
      android:visibility="gone"
      android:weightSum="1">

      <ListView
          android:id="@+id/bookmarkView"
          android:layout_width="match_parent"
          android:layout_height="465dp"
          android:layout_gravity="center_horizontal" />

      <EditText
          android:id="@+id/bookmark"
          android:inputType="textUri"
          android:layout_width="fill_parent"
          android:layout_height="wrap_content"
          android:imeActionLabel="@string/add_bookmark" />
  </LinearLayout>

• Add the following attributes to your MainActivity.java

  // need this for page navigation
  private String[] urls = new String[2];
  private ListView listView;
  private LinearLayout bookmarkLayout;
  private ArrayList<String> bookmarks = new ArrayList<String>();

• Set up the native ListView by adding the following lines to your onCreate method

  // Set up the bookmark view
  bookmarks.add("http://google.com"); // dummy bookmark
  bookmarkLayout = (LinearLayout) findViewById(R.id.bookmarkLayout);
  listView = (ListView) findViewById(R.id.bookmarkView);
  if(listView != null) {
      listView.setAdapter(new ArrayAdapter<String>(this,
              android.R.layout.simple_list_item_activated_1,
              android.R.id.text1,
              bookmarks));
  }
  EditText bookmark = (EditText)findViewById(R.id.bookmark);
  if(bookmark != null) {
    bookmark.setOnEditorActionListener(new TextView.OnEditorActionListener() {
        @Override
        public boolean onEditorAction(TextView v, int actionId, KeyEvent event) {
            if (event != null && (event.getKeyCode() == KeyEvent.KEYCODE_ENTER)) {
                String text = v.getText().toString();
                addItem(text);
                v.setText("");
                InputMethodManager in = (InputMethodManager) getSystemService(Context.INPUT_METHOD_SERVICE);
                in.hideSoftInputFromWindow(
                        v.getApplicationWindowToken(),
                        InputMethodManager.HIDE_NOT_ALWAYS);
            }
            return false;
        }
    });
  }

• Add the following methods

  protected ArrayList<String> getBookmarks() {
      return bookmarks;
  }

  protected void addItem(String item) {
      if(item != null) {
          bookmarks.add(item);
          ((BaseAdapter)listView.getAdapter()).notifyDataSetChanged();
      }
  }


• Fix imports

• Add this line to your res/layout/content_main.xml

  <include layout="@layout/bookmark_main"/>

• Add these lines at the bottom of your onCreate method

  urls[0] = parser.getLaunchUrl();
  urls[1] = urls[0].replace("index.html", "listeditor.html");
  webView.loadUrl(urls[0]);

• Make sure your onNavigationItemSelected looks like this

  public boolean onNavigationItemSelected(MenuItem item) {
      // Handle navigation view item clicks here.
      int id = item.getItemId();

      if (id == R.id.nav_webview) {
          bookmarkLayout.setVisibility(View.GONE);
          webView.setVisibility(View.VISIBLE);
          webView.loadUrl(urls[0]);
      } else if (id == R.id.nav_list_webview) {
          bookmarkLayout.setVisibility(View.GONE);
          webView.setVisibility(View.VISIBLE);
          webView.loadUrl(urls[1]);
      } else if (id == R.id.nav_list_native) {
          bookmarkLayout.setVisibility(View.VISIBLE);
          webView.setVisibility(View.GONE);
      }

      DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
      drawer.closeDrawer(GravityCompat.START);
      return true;
  }

• Make sure to add this attribute to your <activity> tag in your AndroidManifest.xml

  android:windowSoftInputMode="adjustPan"

Run the application

• Run the application by clicking on Run -> Run 'app'. You notice that elements added in the webview and native view are sychronized. Check out the plugin code for more details.
• To avoid seeing weird eglCodecCommon errors in the console add this to your filter: ^(?!eglCodecCommon)
