Managers

In AR Foundation, a manager is a component that provides a scripting interface for an AR feature in a scene. For example, the plane manager enables plane detection functionality and allows you to respond to detected planes in your application code.

AR Plane Manager component

AR Foundation defines its AR features using subsystems. Managers make subsystem data accessible in a scene as GameObjects and components, and they also manage the subsystem life cycle. (Manager is a shorthand for SubsystemLifecycleManager). For example, when the XRPlaneSubsystem detects a plane in the environment, the plane manager creates a GameObject representing that plane. Enabling or disabling the plane manager will also enable or disable plane detection in your app, respectively.

Every AR-related subsystem has a corresponding manager. Subsystems in this package follow the naming convention XR<Feature>Subsystem, and their managers, with the exception of the ARSession component, are named AR<Feature>Manager.

Adding a manager to your scene

To add a manager to your scene, follow the same steps as you would to add any component.

Note

You must add all managers in a scene to the same GameObject as the XR Origin, except the AR Session component and mesh manager, which are special cases.

1. First, select the appropriate GameObject in the Hierarchy window for the manager component you intend to add.
2. Click the Add Component button in the Inspector.
3. Finally, search for and select the manager component you wish to add.

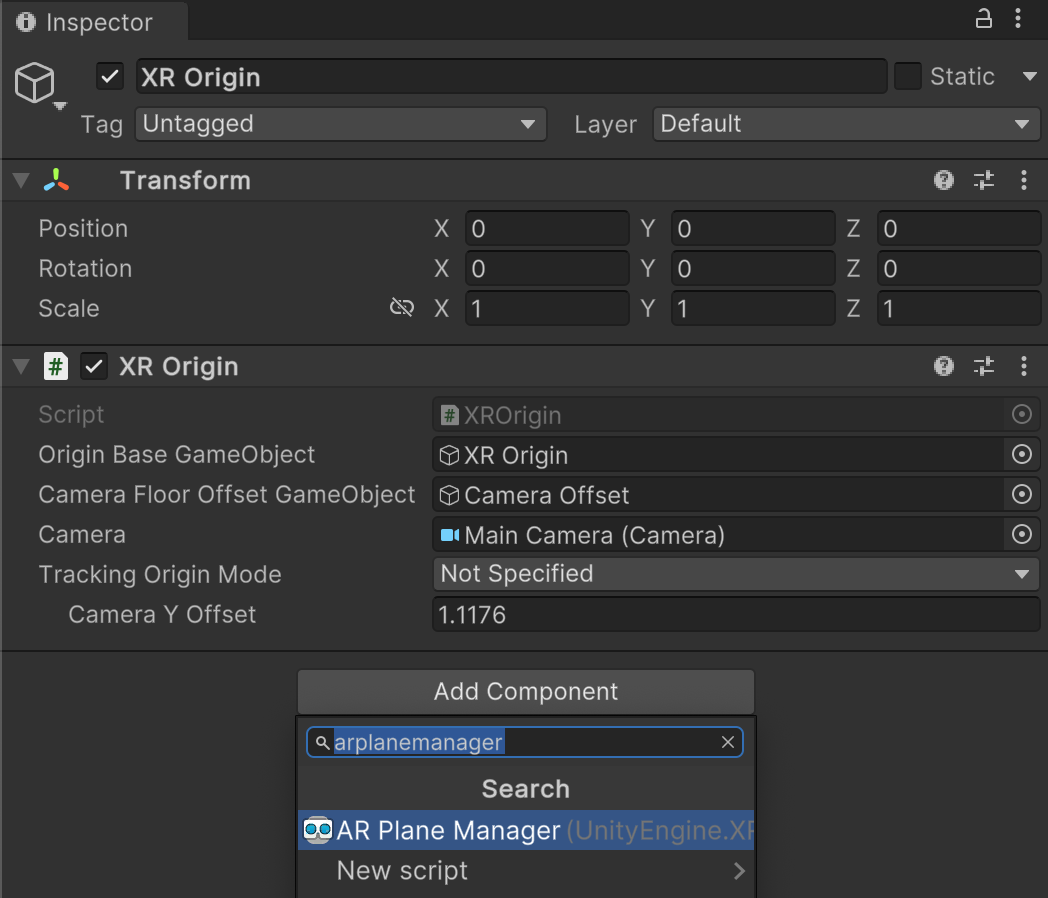

Adding an AR Plane Manager component

Managers add new trackables to a scene as children of the XR Origin, and thus define trackables' positions, rotations, and scales relative to those of the XR Origin.

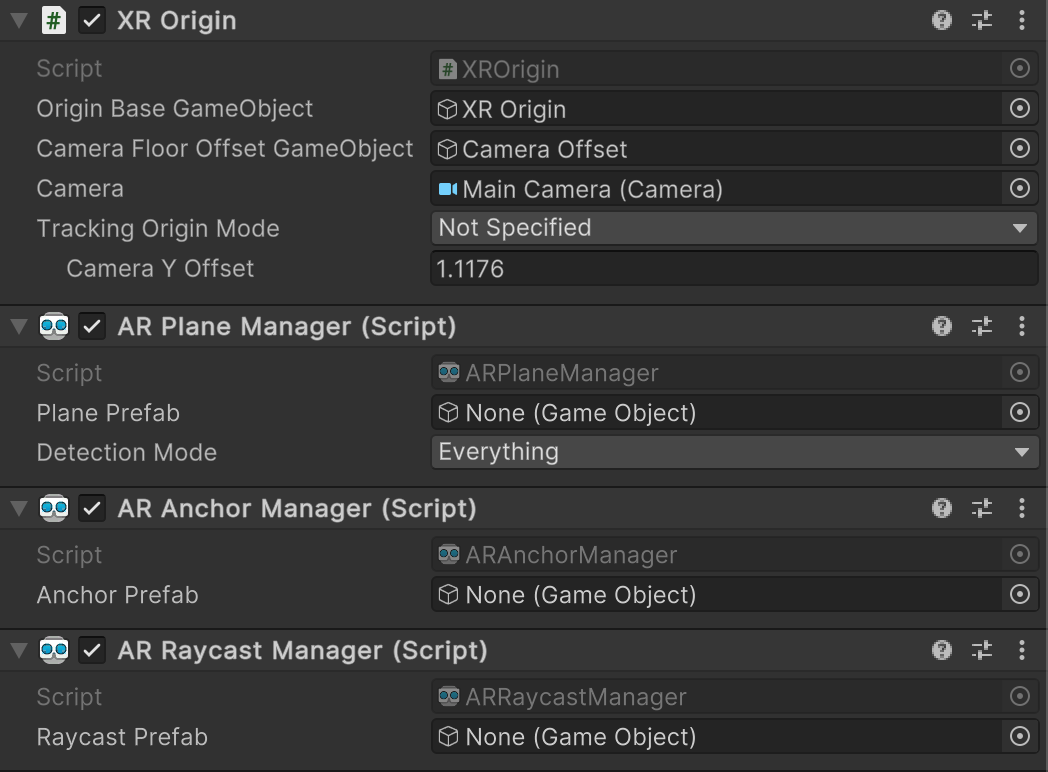

XR Origin GameObject with various managers

Enabling and disabling managers

You can enable or disable AR features by enabling or disabling the relevant manager. For example, you can toggle plane detection on and off by enabling or disabling the AR Plane Manager component.

You should only enable one manager of the same type in a scene at any given time. Enabling more than one instance of a manager can result in undesirable behavior, as each manager instance will interact with the same underlying subsystem.

Active AR features can cause the device to consume more power, so it is a good practice to disable managers when your app isn't using their features.

A manager responds to being enabled or disabled by calling corresponding subsystem life cycle methods:

• OnEnable: Invokes subsystem Start
• OnDisable: Invokes subsystem Stop

If your provider plug-in does not implement a particular subsystem, the corresponding manager automatically disables itself. For example, the Google ARCore XR Plug-in does not currently implement the XRObjectTrackingSubsystem, so the ARTrackedObjectManager always disables itself on the Android platform. See Platform support or your provider documentation to confirm which subsystems are available on your target platform(s).

Trackables and trackable managers

Many AR Foundation subsystems detect and track objects in the physical environment. These subsystems are called tracking subsystems and their managers are called trackable managers. Trackable managers use data from the tracking subsystems to create and maintain trackable components and their GameObjects.

A trackable is a special component that represents anything that can be detected and tracked in the real world. Planes, point clouds, anchors, environment probes, faces, body, images, and 3D objects are all examples of objects with corresponding trackable components.

Each type of trackable is created and maintained by a trackable manager of a matching type. A trackable manager wraps a tracking subsystem and uses its data to manage trackables and their GameObjects. For example, the ARPlaneManager generates ARPlane trackables using data from the XRPlaneSubsystem.

This table summarizes the trackable managers and their trackable types.

Trackable Manager	Trackable	Purpose
ARPlaneManager	ARPlane	Detect and track surfaces.
ARBoundingBoxManager	ARBoundingBox	Detect and track bounding boxes of 3D objects.
ARTrackedImageManager	ARTrackedImage	Detect and track 2D images.
ARTrackedObjectManager	ARTrackedObject	Detect and track 3D objects.
ARFaceManager	ARFace	Detect and track human faces.
ARHumanBodyManager	ARHumanBody	Detect and track a human body.
ARPointCloudManager	ARPointCloud	Detect and track feature points.
ARRaycastManager	ARRaycast	Repeats a raycast every frame.
ARAnchorManager	ARAnchor	Track an arbitrary point in space.
AREnvironmentProbeManager	AREnvironmentProbe	Generate cubemaps of the environment.
ARParticipantManager	ARParticipant	Track other devices in a shared AR session.

Enumerating trackables

Trackables can be enumerated via their manager's trackables property. For example:

var planeManager = GetComponent<ARPlaneManager>();
foreach (ARPlane plane in planeManager.trackables)
{
    // Do something with the ARPlane
}

The trackables property returns a TrackableCollection, which can be enumerated in a foreach statement as in the above example. You can also query for a particular trackable with the TryGetTrackable method.

Trackable life cycle

A trackable's life cycle is managed by its tracking subsystem, and has three phases: added, updated, and removed. A trackable must first be added, then on subsequent frames it can be updated, removed, or have no changes. Each frame, managers query their subsystems to determine whether any changes to their trackables have occurred since the previous frame. Subscribe to the manager's trackablesChanged event to be notified of these changes.

Adding trackables

Some trackables, like anchors and environment probes, can be added and removed manually. Other trackables, like planes, images, objects, and points clouds, are automatically added and removed by their manager. Some trackables can be added either manually or automatically. Where supported, trackable managers provide methods for manual addition and removal.

When you manually add a trackable, the underlying subsystem might not track it immediately. You won't receive an added event for that trackable until the subsystem reports that it has been added (typically on the next frame). During the time between manual addition and the added event, the trackable is in a pending state. You can check this with the pending property on every trackable.

For example, if you add an anchor, it will likely be pending until the next frame:

var anchor = AnchorManager.AddAnchor(new Pose(position, rotation));
Debug.Log(anchor.pending); // "true"

// -- next frame --
void OnAnchorsChanged(ARAnchorsChangedEventArgs eventArgs)
{
    foreach (var anchor in eventArgs.added)
    {
        // anchor added above now appears in this list.
    }
}

The exact amount of time a trackable spends in the pending state depends on the underlying implementation.

Removing trackables

With the exception of anchors, you should never Destroy a trackable component or its GameObject. Trackables are representations of data surfaced by a trackable subsystem and destroying their scene representation has no affect on the subsystem implementation. If a trackable supports manual removal, its manager generally provides a method to remove it. For example, you can remove a persistent raycast by calling ARRaycastManager.RemoveRaycast(ARRaycast).

Anchors are an exception to this rule; you can safely remove an anchor by destroying its GameObject. For more information about adding and removing anchors, see Anchors.

Many trackables, such as planes, images, objects, and point clouds, do not support any form of manual removal. These trackables can only be removed by their manager, which will automatically remove them when it receives a removal notification from the underlying subsystem. When a manager removes a trackable this way, it will Destroy the trackable's GameObject unless destroyOnRemoval is false.

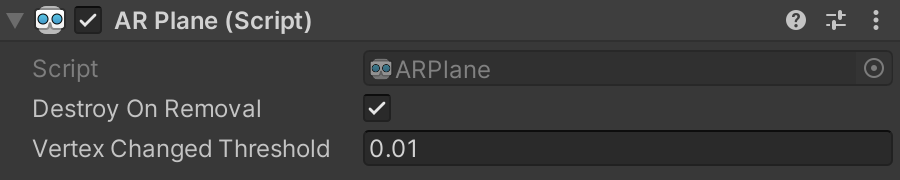

AR Plane component with Destroy on Removal field

Your application can respond to the removal of any trackable by subscribing to the trackablesChanged event of that trackable's manager. For example, when an ARPlane is removed, the AR Plane Manager component invokes its trackablesChanged event with an ARTrackablesChangedEventArgs<ARPlane> struct containing that plane in its collection of removed planes.

Monitoring tracking state

In cases where tracking quality changes, such as if a trackable manager is disabled or a tracked object moves out of frame of the AR device's camera, the relevant subsystem may not remove any trackables. Instead, it may change those trackables' trackingState value. Your application can respond to tracking state changes by reading the trackingState property of trackables as they are added or updated.

Deactivating trackables

Sometimes, you might want to stop performing behavior associated with a trackable without disabling its manager. For example, you might wish to stop rendering detected planes without stopping plane detection.

To do this, deactivate each trackable's GameObject:

var planeManager = GetComponent<ARPlaneManager>();
foreach (var plane in planeManager.trackables)
{
    plane.gameObject.SetActive(false);
}

Visualizing trackables

Trackable components don't do anything on their own; they contain data associated with each trackable. There are many ways to visualize trackables, so AR Foundation includes some visualizers that you can use for debugging or as a starting point to create a visualizer suitable for your application.

Configuring a trackable's GameObject

When a new trackable is detected, its manager instantiates either a copy of the Prefab specified in its Inspector or an empty GameObject if the Prefab is null.

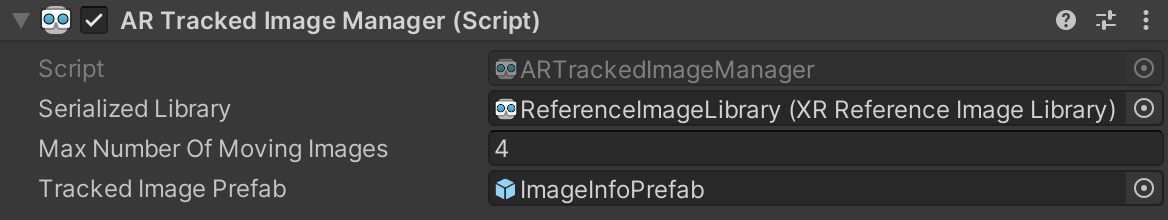

AR Tracked Image Manager component with Tracked Image Prefab field

The instantiated GameObject must have an ARTrackable component for that type of trackable, so if the Prefab is null, the manager creates an empty GameObject and adds only the relevant ARTrackable component. Likewise, if a non-null Prefab does not have the relevant ARTrackable component, the manager adds one.
