    Fill Hole icon Fill Hole (Vertices)

    The Fill Hole action creates a new face that fills any holes that touch the selected vertices.

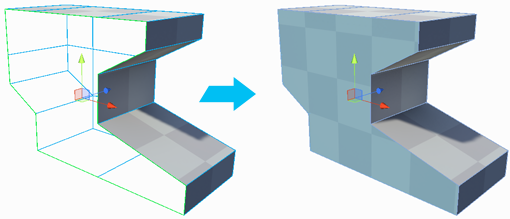

    Create new face from vertices on open edges

    Tip: You can also launch this action from the ProBuilder menu (Tools > ProBuilder > Geometry > Fill Hole).

    Fill Hole Options

    Fill Hole options

    Enable the Fill Entire Hole option to fill the entire Mesh opening. This is enabled by default.

    If you disable this option, ProBuilder tries to build a Mesh between the selected open vertices. For example, if you have a missing quad, you can select any three adjacent vertices in order to create a triangular polygon that covers half of the hole.
