References component

The References component displays how objects reference each other in your snapshot. Use this component to see how the selected object is linked to other objects.

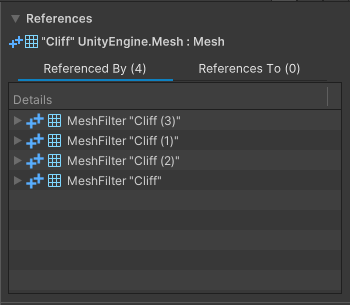

The References component

The component has two tabs to display reference information:

• The Referenced By tab shows the tree of references from the selected object.
• The References To tab shows a list of objects that the selected object references.

The References component displays the selected object's name regardless of whether it contains any references. If a selected object does contain references or if another object references the selected object, then the component lists the references in the appropriate tab.

By default, the entries in the Referenced By tab are collapsed and only show the root object. Select objects that belong to a hierarchy to expand them and see the full reference hierarchy of the object.

In the References To tab, the component only displays all directly referenced objects but not the objects referenced by these.
