Entities Hierarchy window reference

The Entities Hierarchy window is an Editor window that you can use to see the entity hierarchy of each world in your project. This window is useful if your project has a lot of entities that you want to search for and visualize in their hierarchy.

It contains the same operations that you can perform in the Hierarchy window for GameObjects, but you can't select multiple items at once.

To open the Entities Hierarchy window, go to Window > Entities > Hierarchy.

To select the Worlds in your project, use the drop-down in the top left of the window. You can also search for specific entities by their name, ID, or component.

Tip

To view more information about an entity, select it in the list. Unity then displays it in the Inspector window.

Data modes

To manually switch between data modes, select the circle in the right hand corner to switch between Authoring and Runtime data modes. Unity automatically switches between modes when you enter or exit Play mode.

To see the full entities hierarchy in both Edit mode and Play mode, enable real-time conversion of GameObject data into Entities data. To do this, open the Preferences window and go to Entities > Baking > Live Baking. For more information, see Entities Preferences reference

Authoring data mode

In Authoring data mode, the Entities Hierarchy window displays a white or gray circle in its top right corner. In this mode, you can see the following in the Entities Hierarchy window:

	In Edit mode	In Play mode
Outside a Sub Scene	- GameObjects - Prefab instances	Nothing is displayed because the original GameObjects outside Sub Scenes no longer exist and are now in their runtime state.
Inside a Sub Scene, if open	- GameObjects - Prefab instances	- GameObjects - Prefab instances
Inside a Sub Scene, if closed	Read-only entities	Read-only entities

Note

Even in Play mode, Prefab instances aren't unpacked inside Sub Scenes. The Sub Scene and the GameObjects within act as if they're still in Edit mode and you can make changes to them without losing those changes when exiting Play mode.

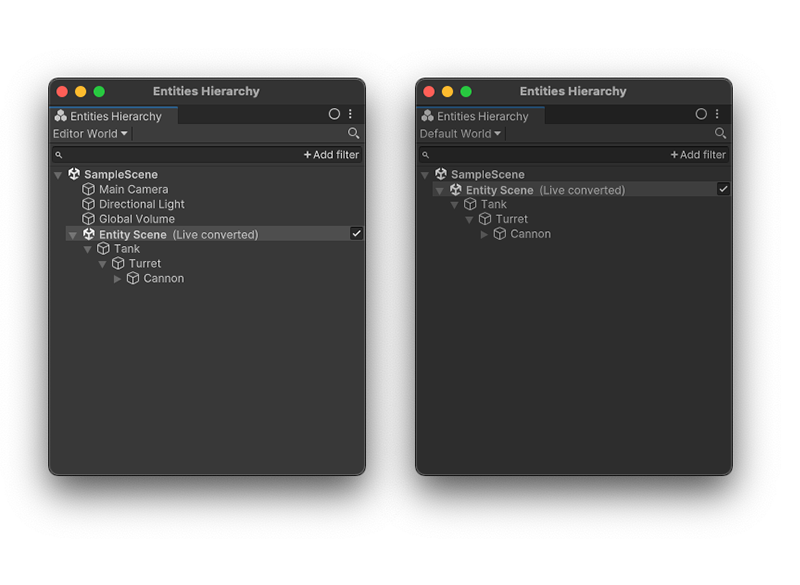

Entities Hierarchy window in Authoring data mode. Edit mode (Left), Play mode (Right).

Runtime data mode

In Runtime data mode, the Entities Hierarchy window displays an orange or red circle in its top right corner. In this mode, you can see the following in the Entities Hierarchy window:

	In Edit mode and Play mode
Outside a Sub Scene	- GameObjects as their runtime state. - Entities created outside the Baking process, and outside Sub Scenes, like WorldTime.
Inside Sub Scenes	Only entities.

Everything marked with an orange or red vertical bar relates to runtime data.

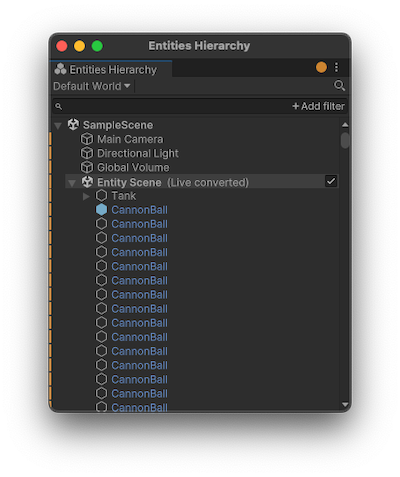

Entities Hierarchy window in Runtime data mode

Mixed data mode

In Mixed data mode, the Entities Hierarchy window displays a white and orange or gray and red circle in its top right corner. This mode is available only when you enter Play mode. In this mode, you can see the following in the Entities Hierarchy window:

	In Play mode
Outside a Sub Scene	- GameObjects in their runtime state. - Entities created outside the baking process, and outside Sub Scenes, like WorldTime.
Inside Sub Scenes	- GameObjects in their authoring form - Prefab instances. - Entities that Unity created in the Sub Scene at runtime, and have no corresponding authoring GameObjects.
