Sweep
Sweeps the shaft of a RC servo motor back and forth across 180 degrees.
This example makes use of the Arduino servo library.
Hardware Required
- Arduino or Genuino Board
- Servo Motor
- hook-up wires
Circuit
Servo motors have three wires: power, ground, and signal. The power wire is typically red, and should be connected to the 5V pin on the Arduino or Genuino board. The ground wire is typically black or brown and should be connected to a ground pin on the board. The signal pin is typically yellow, orange or white and should be connected to pin 9 on the board.

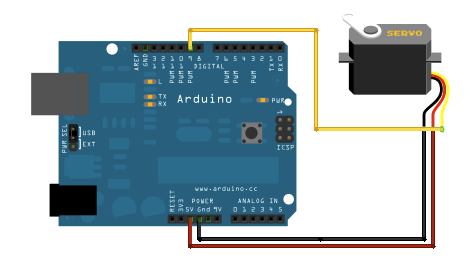

click the images to enlarge
images developed using Fritzing. For more circuit examples, see the Fritzing project page

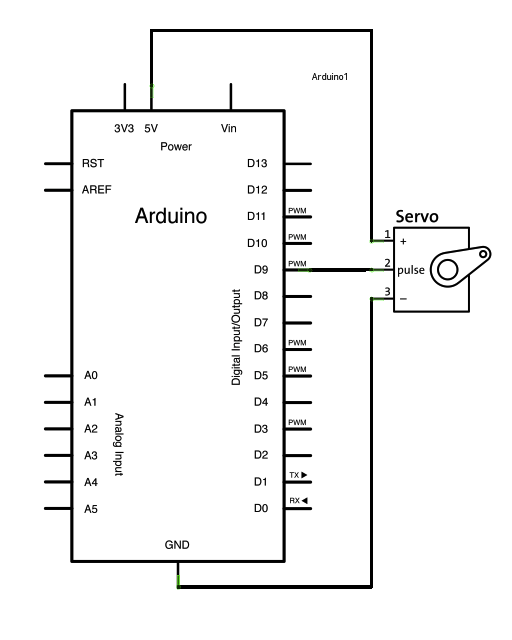

Schematic
Code
See also
- attach()
- write()
- map()
- Servo library reference
- Knob - Control the position of a servo with a potentiometer.
